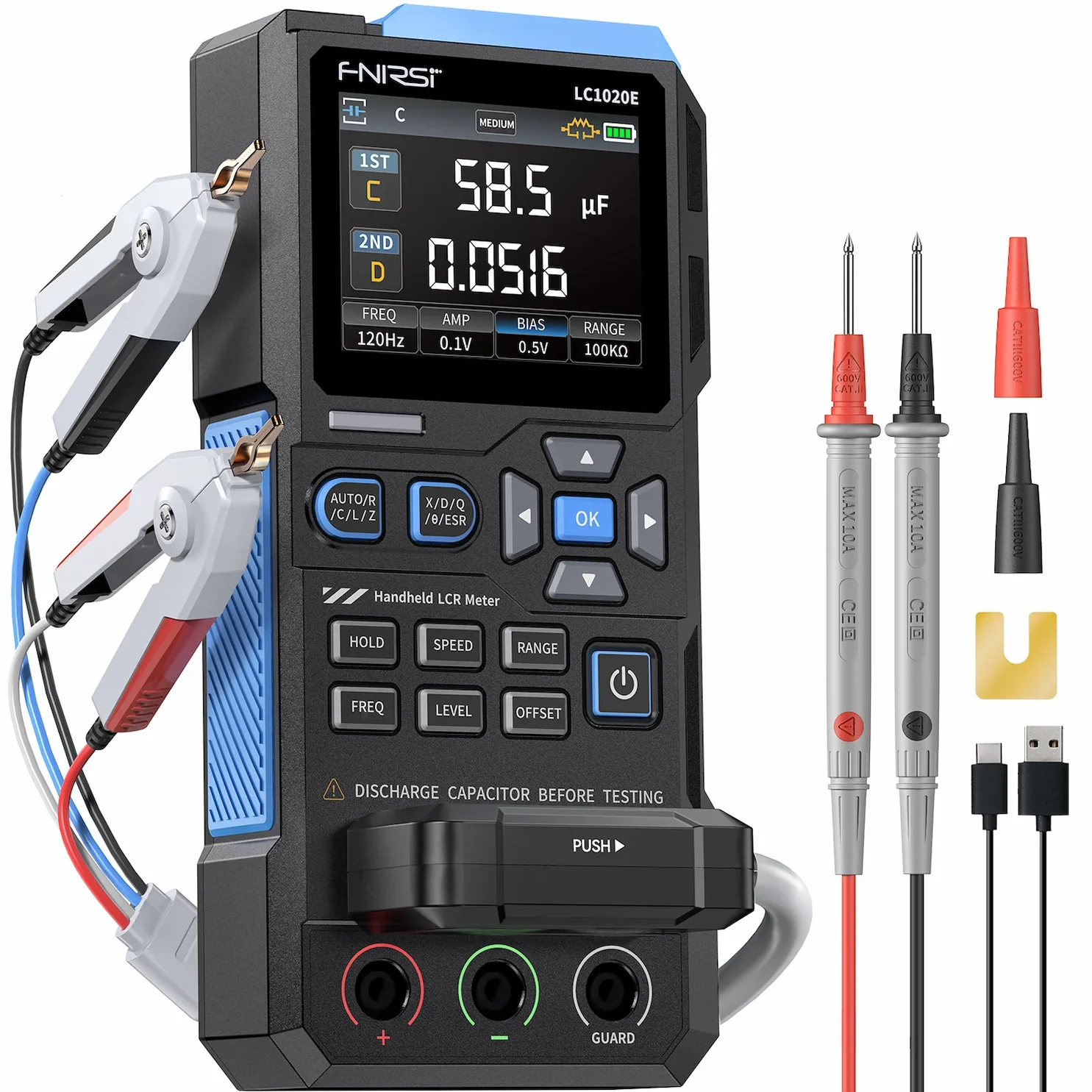

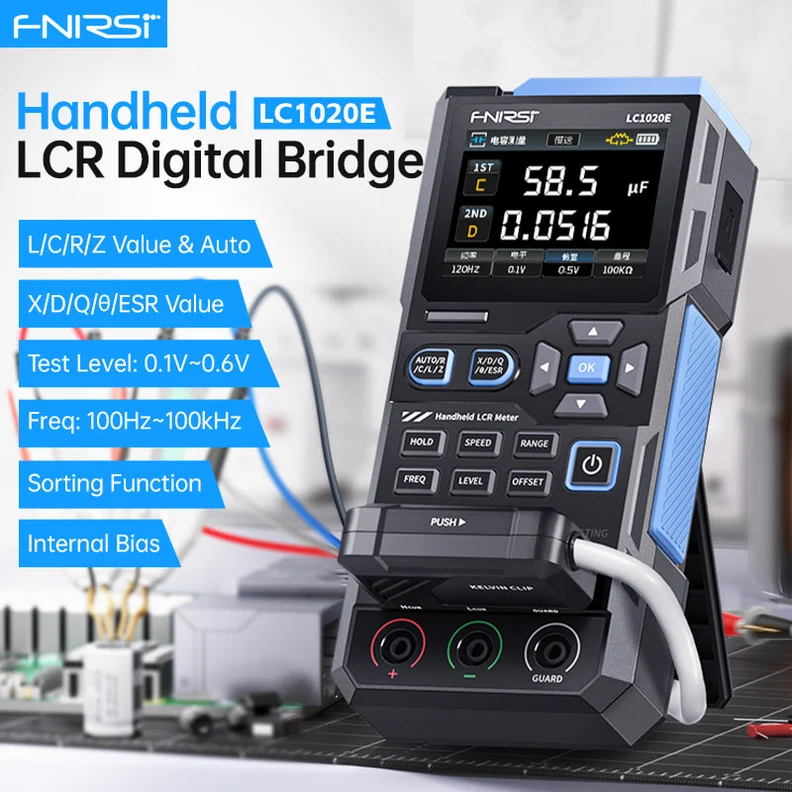

FNIRSI LC1020E High Precision Handheld Digital Bridge LCR ESR Tester
Original price was: රු24,500.00.රු19,500.00Current price is: රු19,500.00.
- 🎯 High Precision: 4.5-digit resolution with ±0.05% accuracy.
- ⚡ Smart Auto-ID: Instantly detects R/L/C components.
- 🎛️ Versatile Testing: 5 frequencies (up to 100kHz) & 3 RMS levels.
- 🔌 4-Wire Kelvin: Dual test ports for zero resistance errors.
- 🔋 Portable Power: 3000mAh rechargeable battery & 2.8″ color display.
19
People watching this product now!
Description
Key Features & Highlights

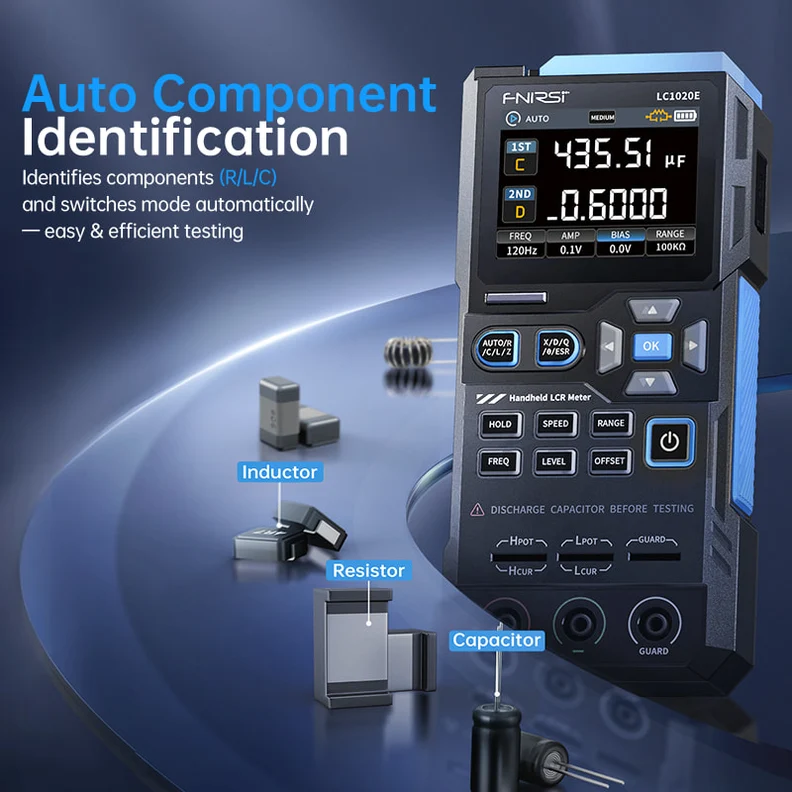

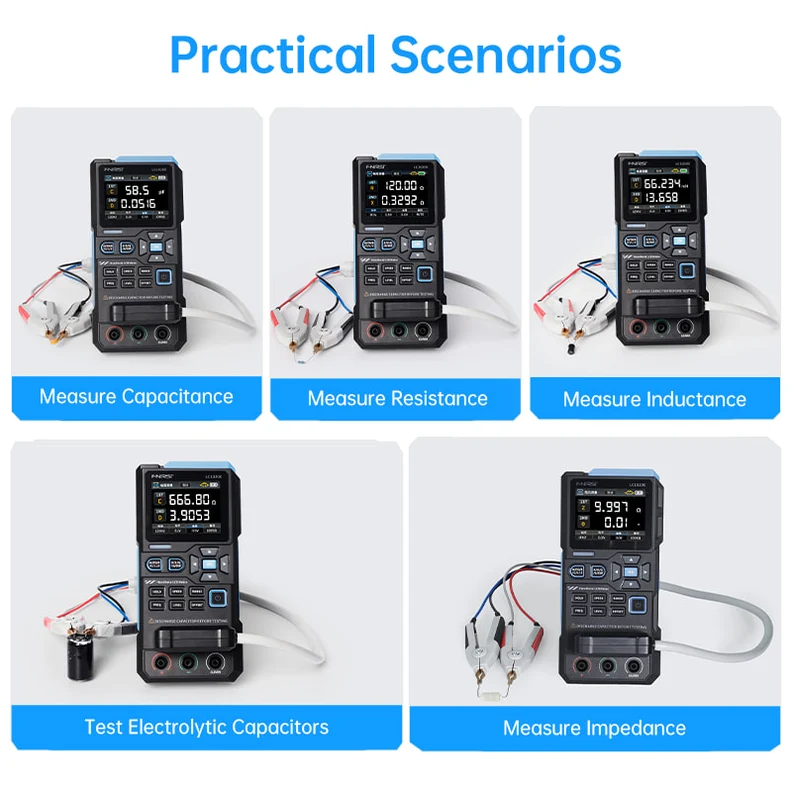

| Smart Auto-ID | Automatically recognizes R/L/C components and switches modes instantly for fast testing. |
| High Precision | Achieves up to ±0.05% basic accuracy with a 4.5-Digit resolution display. |

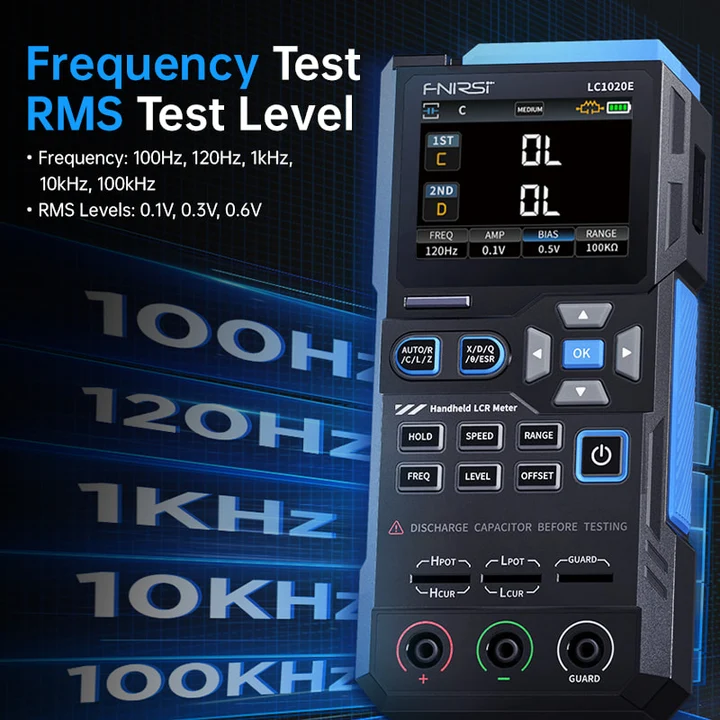

| Multi-Frequency | Supports 5 test frequencies: 100Hz, 120Hz, 1kHz, 10kHz, and 100kHz. |
| 4-Wire Kelvin Testing | Dual test ports (3-terminal & 5-terminal) minimize lead resistance error for maximum accuracy. |
| Test Voltage Selection | Offers 3 RMS test levels: 0.1V, 0.3V, 0.6V for flexible circuit testing. |

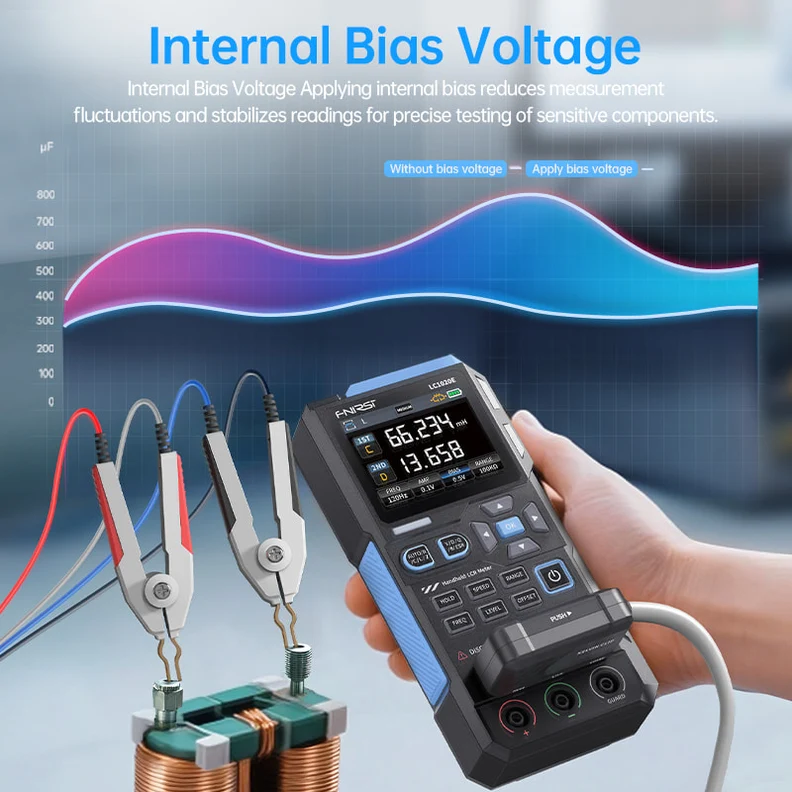

| Internal Bias Voltage | Built-in 0.0V / 0.5V bias stabilizes readings for sensitive components. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FNIRSI LC1020E |
| Display | 2.8-inch TFT LCD (Dual 4.5 Digits) |

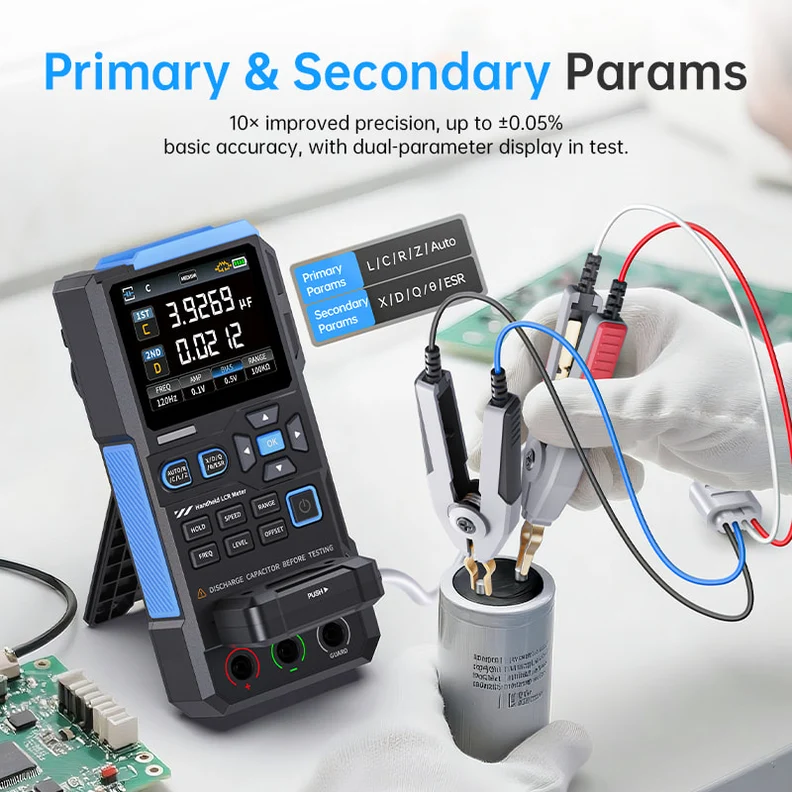

| Main Parameters | AUTO / R / C / L / Z |
| Secondary Parameters | X / D / Q / θ / ESR |
| Capacitance (C) Range | 1 pF – 100 mF |
| Inductance (L) Range | 1 µH – 100 H |
| Resistance (R) Range | 10 mΩ – 10 MΩ |
| Basic Accuracy | 0.3% |
| Communication Interface | USB Type-C (Virtual Serial Port) |
| Power Supply | 3.7V 3000mAh Rechargeable Lithium Battery |

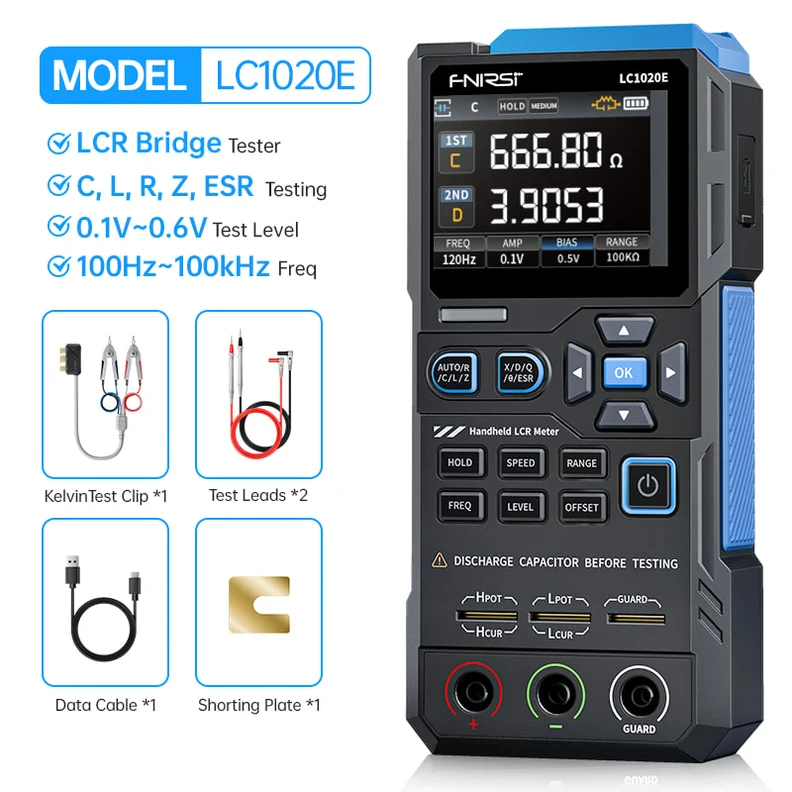

Package Contents
| ◉ 1 × LC1020E LCR Meter | ◉ 1 × Kelvin Test Clip Set |
| ◉ 1 × Pair of Test Leads (Red/Black) | ◉ 1 × Shorting Plate |
| ◉ 1 × USB Type-C Data Cable | ◉ 1 × User Manual |
