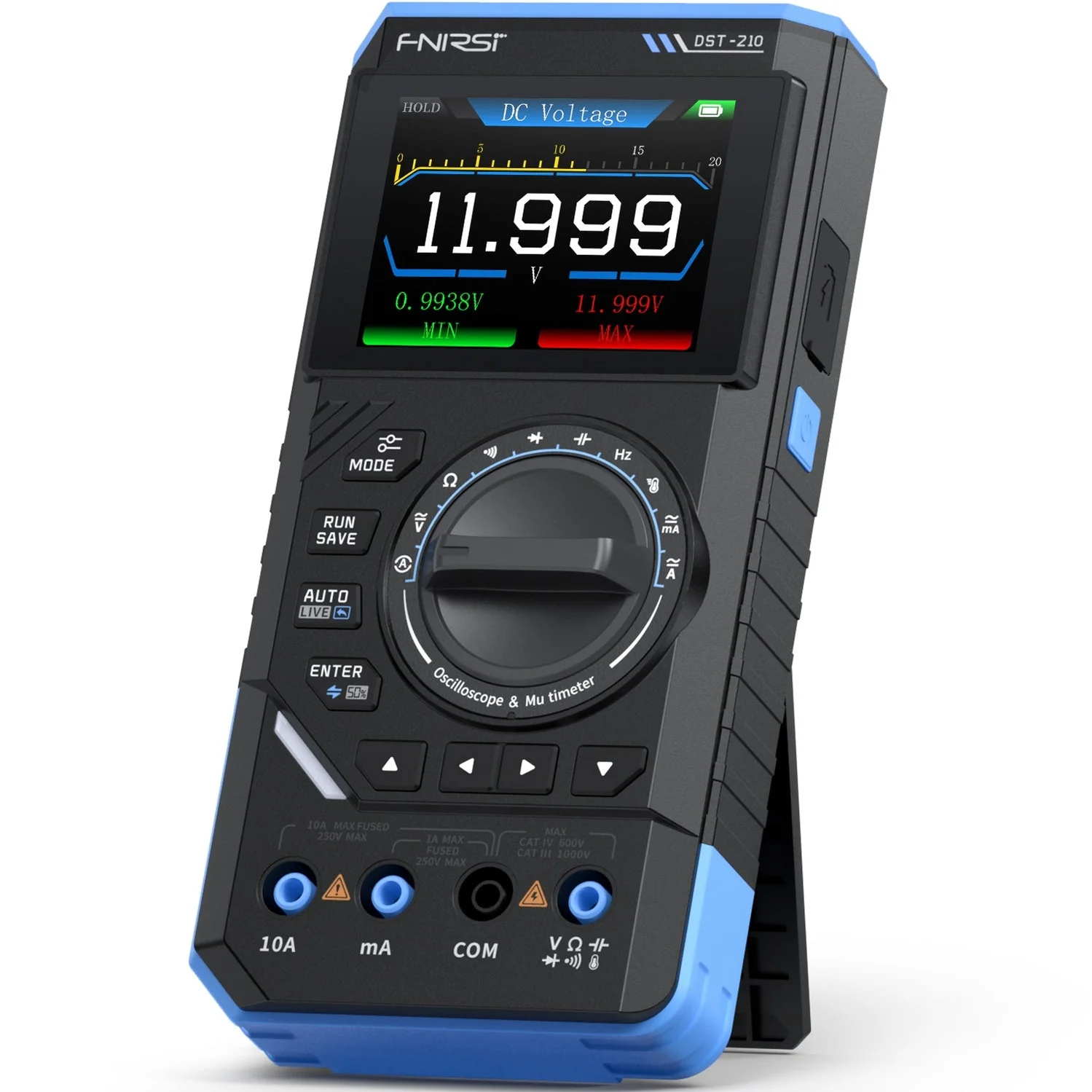

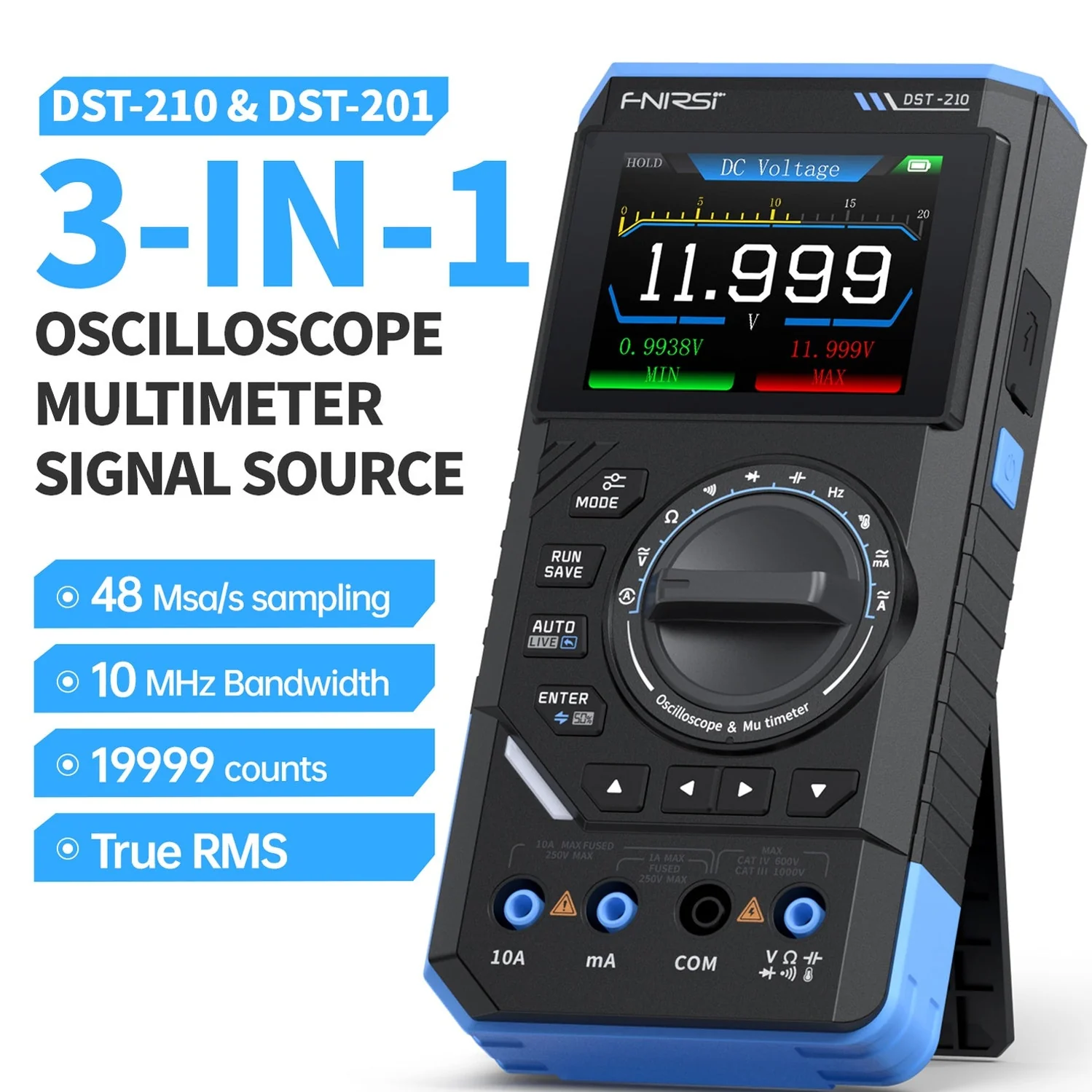

FNIRSI DST-210 Handheld 3-IN-1 Multimeter Oscilloscope Signal Generator

⚡ FNIRSI DST-210 Multifunction Tester

The FNIRSI DST-210 is a powerful all-in-one testing instrument designed for
electronics repair, maintenance, troubleshooting and R&D.
It combines a high-performance digital oscilloscope, multifunction multimeter and signal generator
in one compact and portable device.

🔧 Key Features

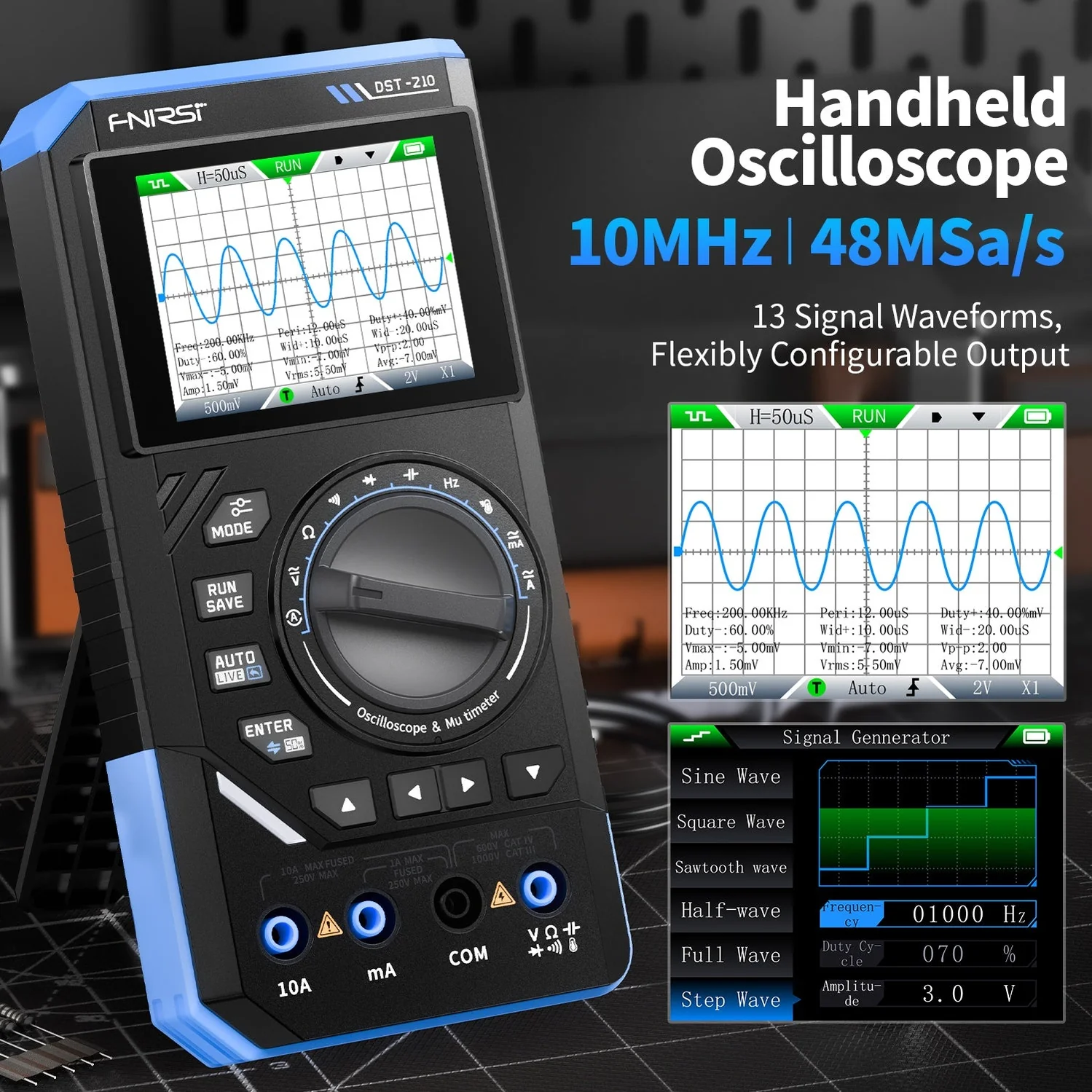

📈 High-Performance Oscilloscope

Capture and analyze electronic signals with 48MSa/s sampling and
10MHz bandwidth. The DST-210 supports AC/DC coupling,
Auto/Normal/Single trigger modes, rising and falling edge triggering,

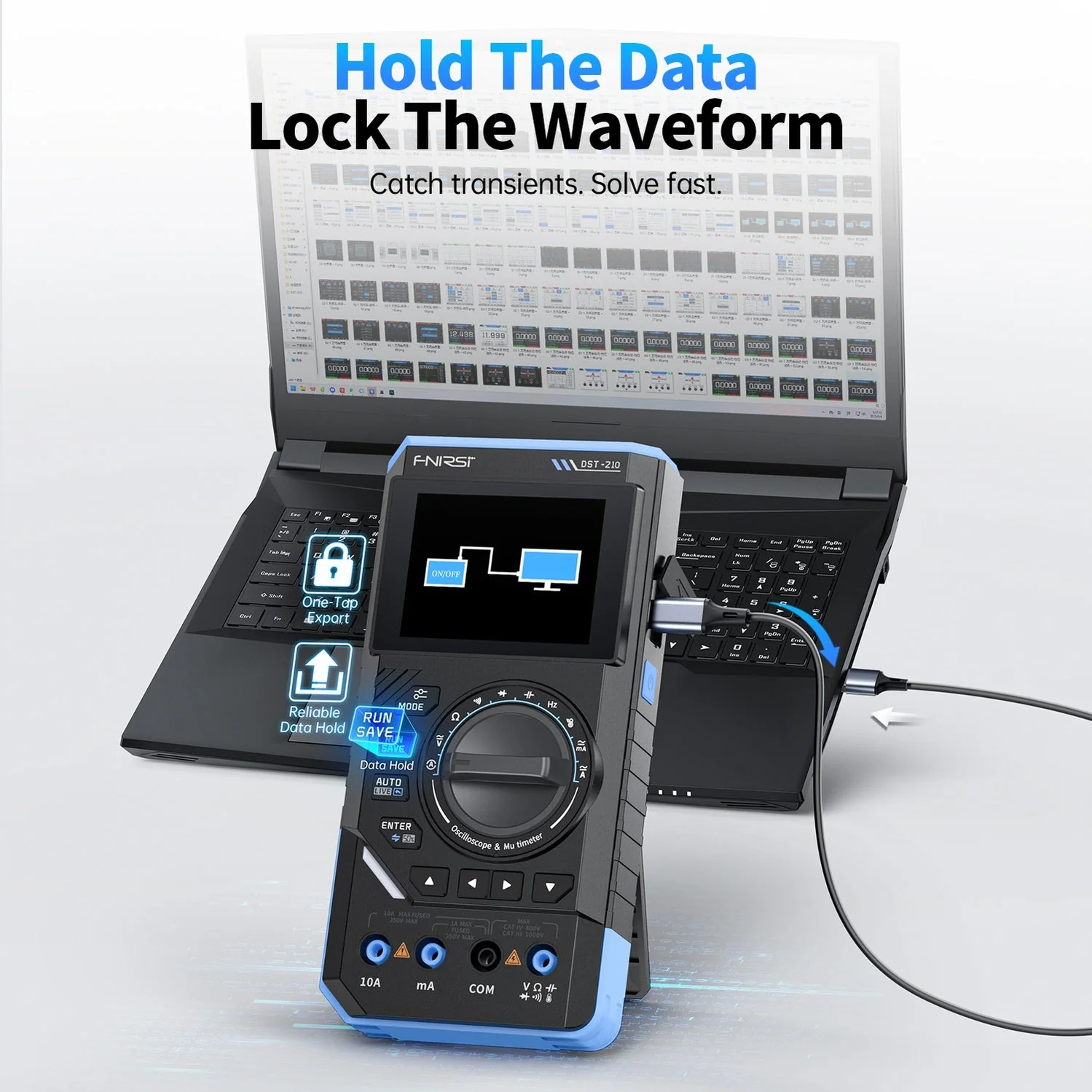

adjustable trigger levels and waveform freeze using the HOLD function.

Automatic measurements include Max, Min, Average, RMS, VPP, Frequency,
Period and Duty Cycle, making waveform analysis faster and easier.

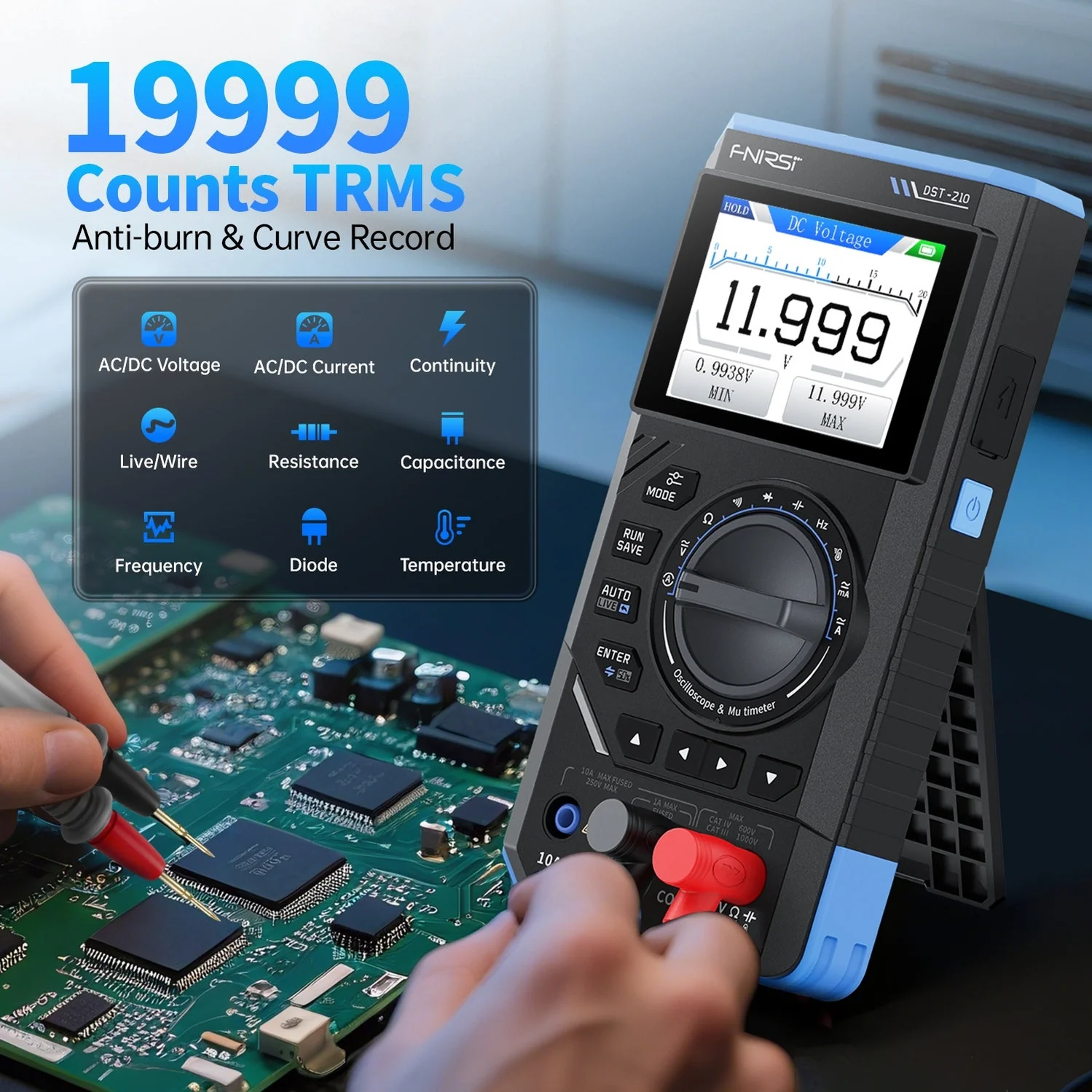

🔬 Full-Function Multimeter

Perform a wide range of electrical measurements including
DC voltage up to 1000V, AC voltage up to 750V, AC/DC current up to 9.999A,
resistance up to 19.999MΩ, capacitance up to 99.99mF, frequency, temperature,
diode and continuity testing.

〰️ 13-Waveform Signal Generator

Generate test signals from 0–50KHz with adjustable amplitude from
0.1V to 3.0V. The built-in generator supports 13 waveform types
and adjustable square-wave duty cycle from 0–100%, providing flexibility
for circuit testing and development.

🛠️ Ideal For

Electronics Repair · Circuit Testing · Electrical Maintenance ·
R&D · Engineering · Education · Factory Testing · DIY · Hobby Projects
